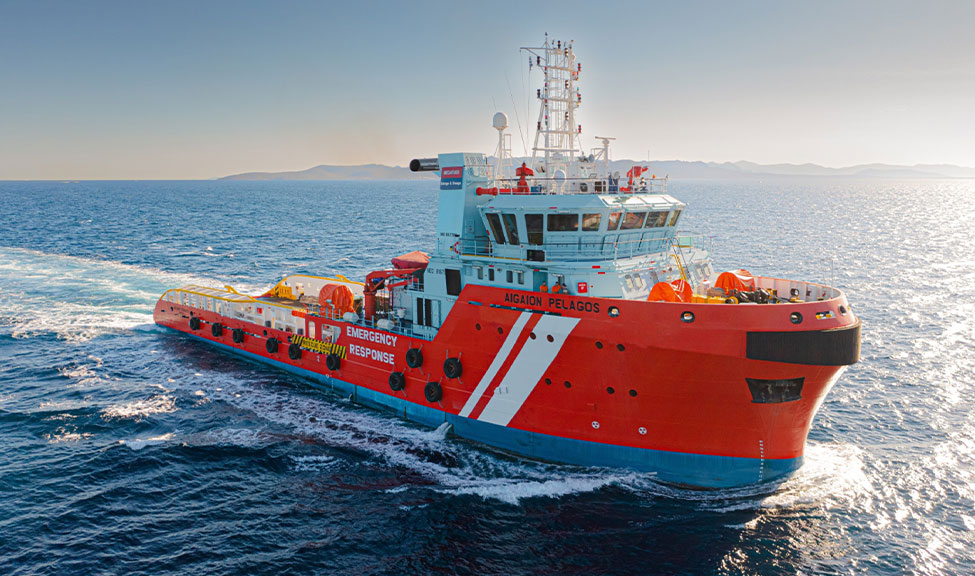

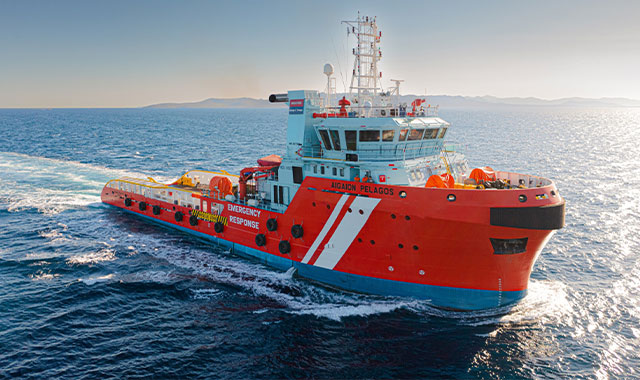

AHTS AIGAION PELAGOS

AHTS AIGAION PELAGOS

REGISTRATION
Built Remontowa, Poland
Classification BV ✠A1, ✠AMS, ✠DPS-2, Ⓔ, AH/Offshore Support &Towing Vessel, Fire Fighting Class 1
DIMENSIONS
LOA 70 m
Breadth (moulded) 15.5 m
Depth (mould to sh.dk) 6.6 m
Draft (max) 5.112 m
GRT 2301
NRT 690
Deadweight @ 5.112m 2058T
CARGO CAPACITY

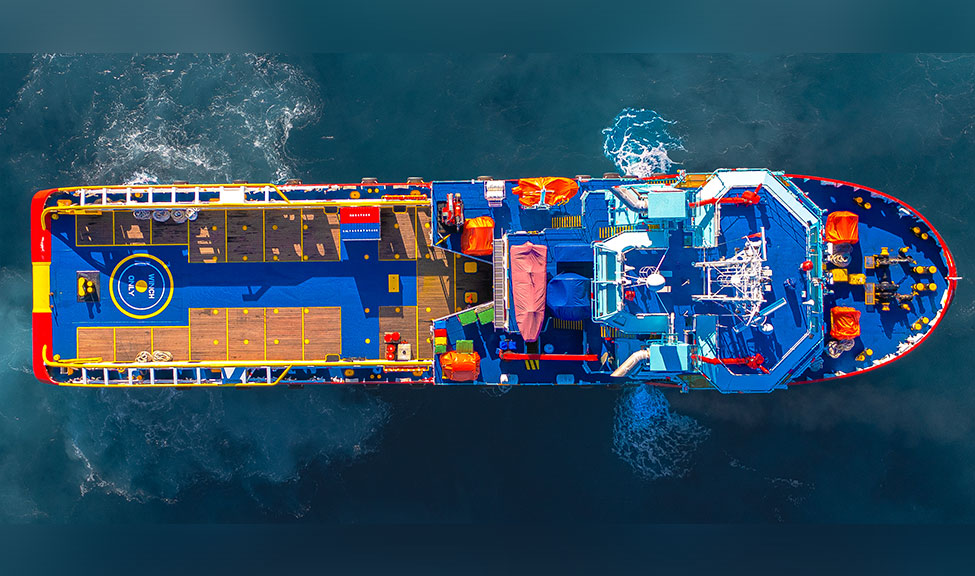

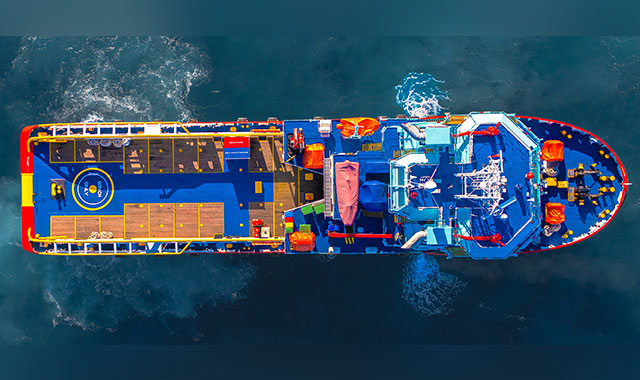

Clear Deck Space 415 m2 (34.6 X 12)
Deck Load 1000 T
Fuel Oil 828 Cum @ 100%
Potable Water 608 Cum @ 100%
Drill Water 656 Cum @100%
Mud 480 Cum @ 100%
Liquid Mud 480 m3
Drilling Fluid 990 Cum @ 100%
Dry bulk 190 Cum @ 100%
DISCHARGE RATES
Fuel 650 GPM @ 86PSI TDH (60 Mts)
Pot Water 1 x 150 m³/hr @ 90 mhd
Drill Water 1 x 150 m³/hr @ 90 mhd
Mud 1 x 150 m³/hr @ 67 mhd
Brine 1 x 75 m³/hr @ 90 mhd
Base Oil 1 x 150 m³/hr @ 90 mhd
Slop Disc. 1 x 5 m³/hr @ 45 mhd
Dry bulk 1 x 1100 m³/hr @ 5.5 Bar
MACHINERY
Main Engines 2 x 5,094 KW
Total – 10,188 BHP
Shaft Alternators 2 x 1,724 kW
Generators 2 x 250 kW
Emergency Gen 1 x 105 kW
Bow Thrusters 2 x 800 BHP (Tunnel)
Stern Thrusters 1 x 800 BHP (Tunnel)
Rudders 2 x Fish tail high lift
Propellers 4 Bladed prop in nozzles
SPEED & CONSUMPTION
At 5.0 M draft = 14Kts
ACCOMMODATION TOTAL 28 PERSONS
2 x 1 berth cabins = 2
9 x 2 berth cabins = 18
2 x 4 berth cabins = 8
1 X 1 hospital = 1
All cabins fully air-conditioned
EXTRA EQUIPMENT
Rescue Zone Port & Stbd side
Oily Water Separator 1 m³/hr MARPOL standard
Sewerage Treatment Plant 1 x 29 men per day
VESSEL MANAGEMENT DP AND JOYSTICK (ABS NOTATION DPS-2, FMEA)
L3 DP system
2 x DP Controller
2 x Wind Sensor
2 x Master Gyro
2 X DGPS
1 X Cyscan
Joystick for control of all the thrusters and propellers
Powers management System
VRS
CRANES
1 x 2T @ 10m
BOLLARD PULL
120 T
TOWING AND ANCHOR HANDLING
Double Drum A/H Towing Winch,
Fukushima DDWG-300H-4M
Brake Holding 450 Tonnes
Winch Pull 350T @ 6m/min
197T @ 10.m/min
129T @ 16.3m/min
Towing drum Capacity 1500 m X 76 mm
Anchoring Handling Capacity 1,500 m of 76 mm
Gypsies 2 x 3.25 inch (76mm Chain)
Karm Forks 2 x SWL 300 T
Towing pins 4 x SWL 160 T
Stern Roller 2.5 m Ø x 4 m
SWL 500 T
Chain Lockers 2 x 80 m3
Tugger Winches 2 x 10 T
STORAGE DRUM
Capacity 1,500 m of 76 mm

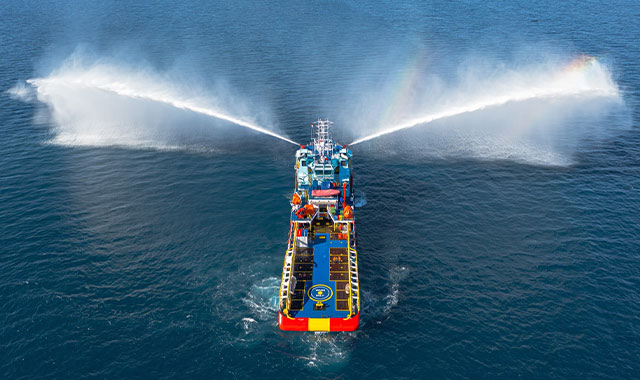

FIREFIGHTING - FIFI CLASS 1
2 x 1,500 m3 / hr @ 14 Bar
2 x 1,200 m3 / hr remote controlled Fire Monitors Throw 120 m x Height 50 m
NAVIGATION AND COMMUNICATION EQUIPMENT
SSB Radio 400 w duplex Radiotelephone MF/HF radio telephone
Inmarsat C
VHF radio tel C/W DSC watch-receiver
AIS
Navtex
Radar Transponder - SART
EPIRB
Magnetic Compass
Ship Security System
2 x Radar X Band ARPA
Doppler Speed Log
GPS Navigator
Echo Sounder
3 x GMDSS Walkie Talkies
