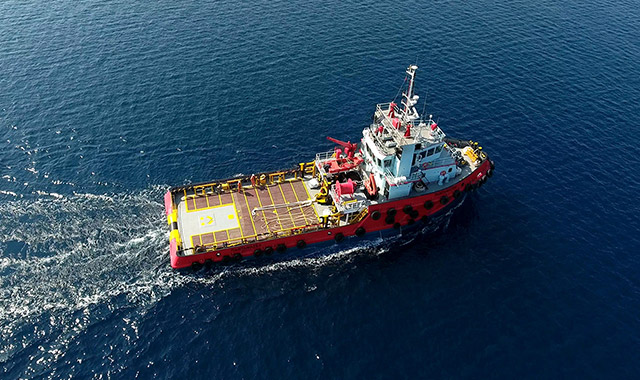

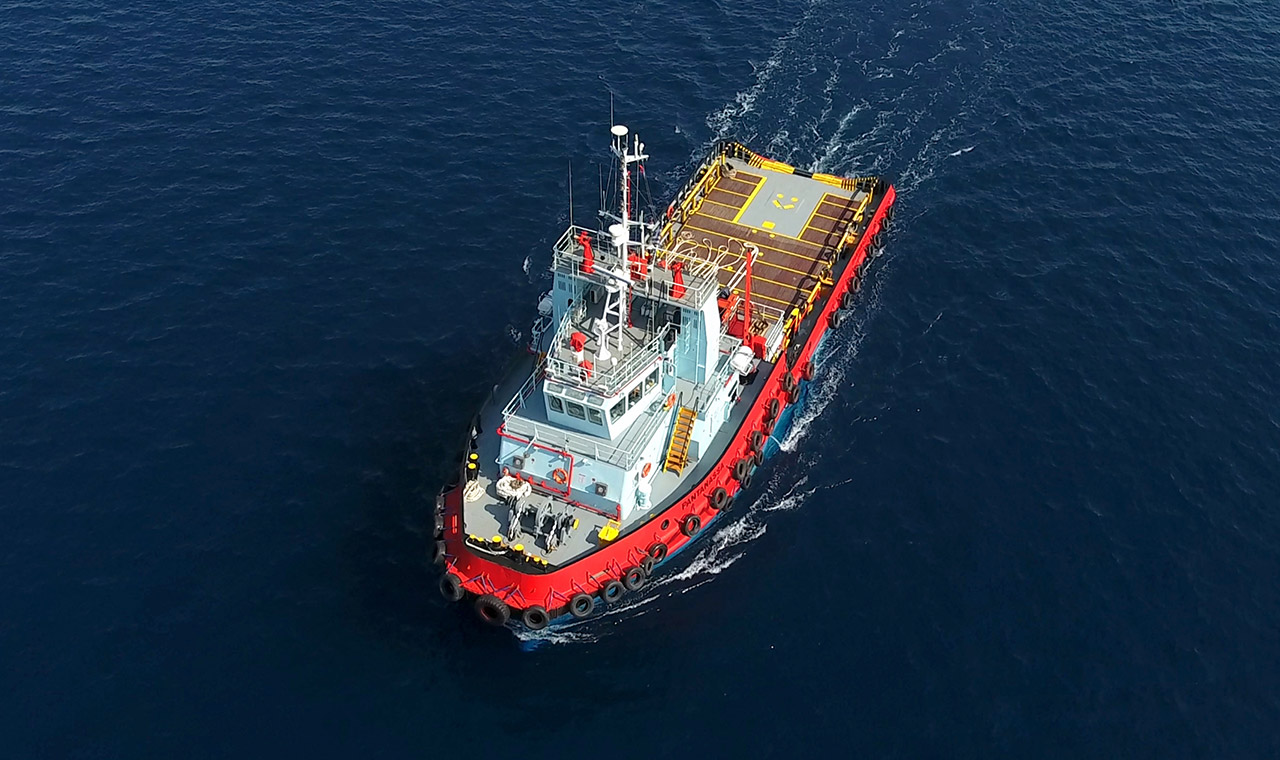

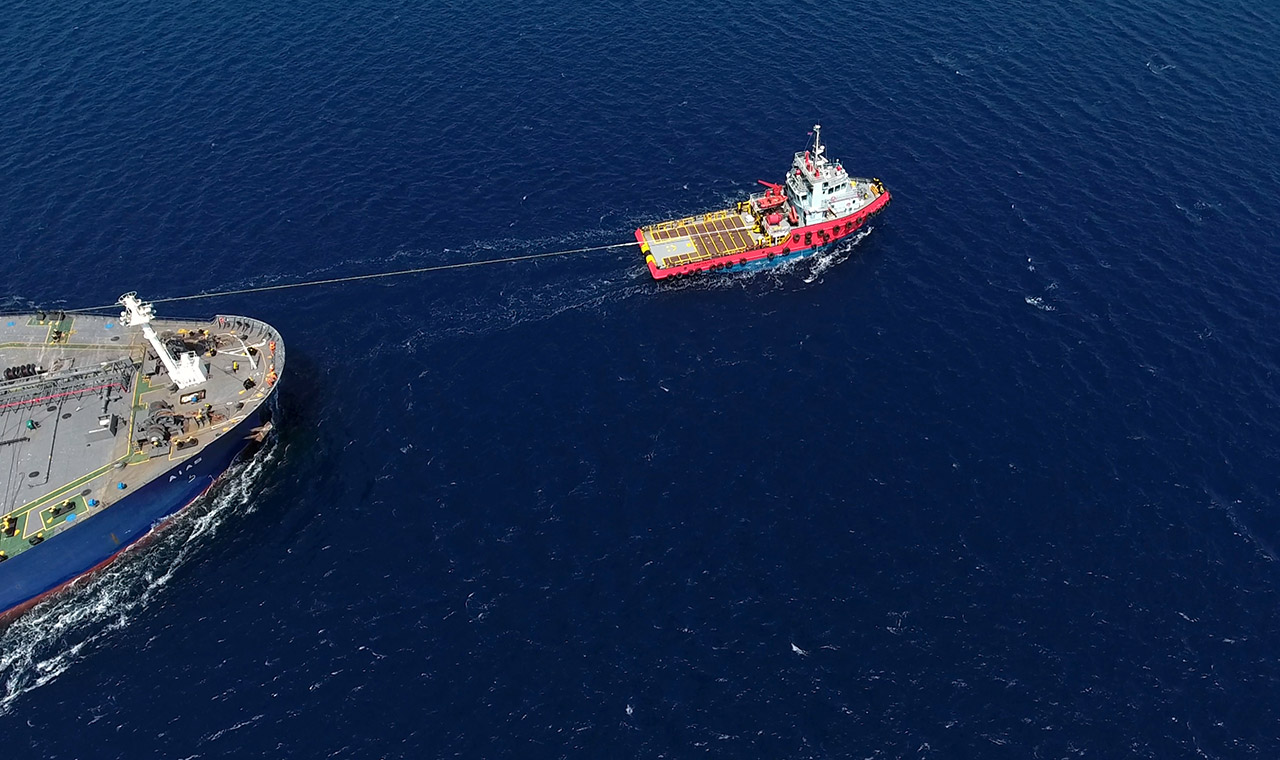

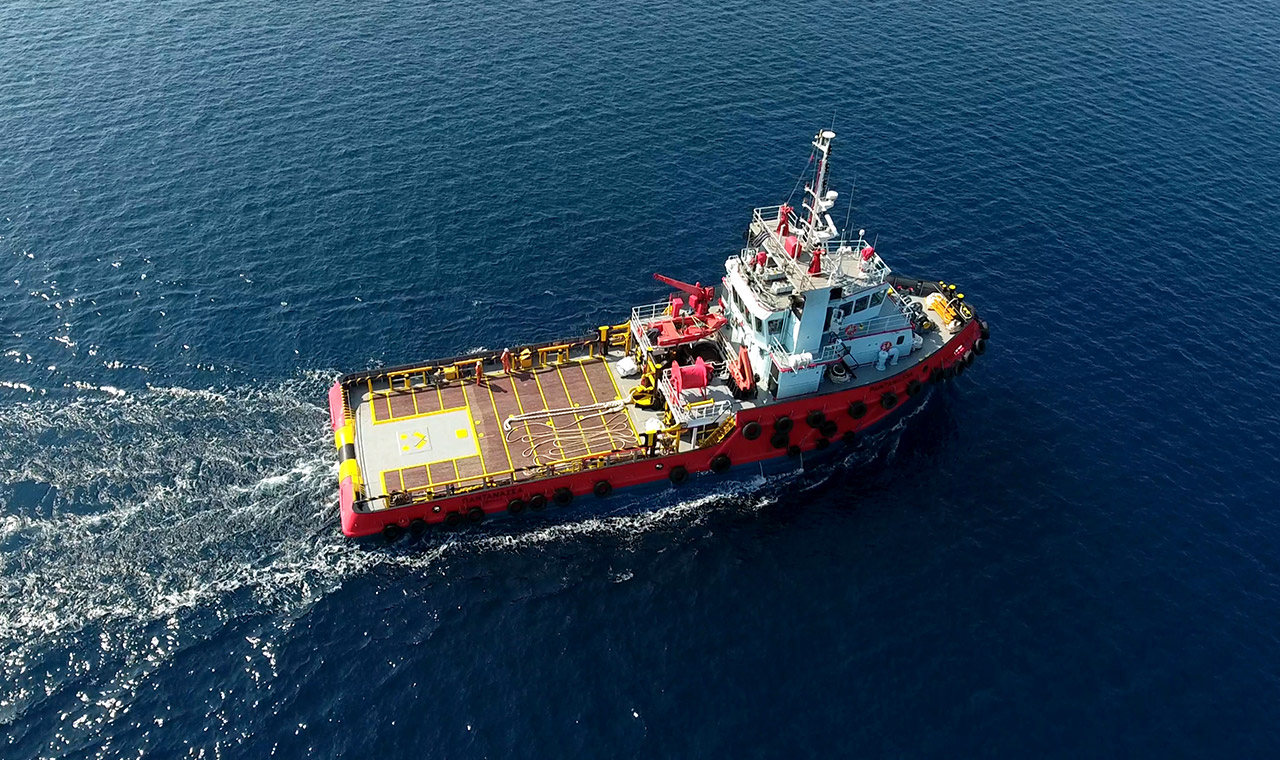

T/B PANTANASSA

PANTANASSA

PARTICULARS
Vessel Type Anchor Handling, Salvage Tug
IMO Number 9332561
Port of Registry Piraeus
Year Built 2005
Classification Bureau Veritas Hull Mach, Tug, Oil Recovery Ship, FIFI I – Water Spray, Unrestricted navigation
DETAILS
Length Overall 40m
Breadth 11.8m
GRT-NRT 499/149
Depth Moulded 4.6m
Maximum draft 3.8m
Clear deck Space 150m2
Deck loading 5t/m2
Max Speed/ Consumption 24 h 13 kn / 7 m3
Economical speed/ Consumption 24 h 10 kn / 4.2 m3
Bollard Pull 61.5t
Sewage Plant MARPOL compliant, 20 persons
Rudders Twin
Joystick Not fitted
CAPACITY
Fuel Oil 368.18 m3
Potable Water 172.3 m3
Foam 7.8 m3
Detergent 9.3 m3
MACHINERY
Main Engines 2 x Caterpillar 3516B, 2026 HP each
Generators 2 x Caterpillar 3306C – 311 BHP - 232 kW each
Port Generator 1 x CAT DE110E2 110kVA
Bow Thruster 3t
Propulsion 2 x Fixed pitch
ACCOMMODATION
Berths 3x 1, 1x 2, 3x 4
Total 17
FIRE FIGHTING
Class FIFI I
Monitors 2 x 1200m3/hr
Pumps 1 x 2900m3/hr
DECK EQUIPMENT
Towing Winch
Type Double drum waterfall
Pull 50t
Wire Capacity 1000m x 42mm
Anchor Handling Winch
Type Plimsol double drum waterfall
Pull 50t
Brake Holding 120t
Wire Capacity 1000m x 42mm
Tugger Winch
Number & Capacity 2 x 5t SWL
Wire Capacity 100m x 26mm
Other Deck Equipment
Towing Pins Plimsol 100t
Stern Roller Plimsoll 1.45 m x 3.5 m, 150 t SWL
Stern Roller 3.5m x 1.45m 150t SWL
Shark Jaws 100t strong jaw, 78mm
Deck crane Palfinger, PK 15500 C, 910 KG @ 12,40 m
LIFESAVING
Liferafts 2 x 20 man
Lifejackets 39
FRC/Rescue Boat/Davit SOLAS Semi-rigid BMD Rescue boat & KATO KS 454 RC Davit
Lifebuoys 8
SPECIALIST
Rescue Zone Fitted
SPECIALIST
Oil Spill Response booms Yes
Salvage pumps Yes
