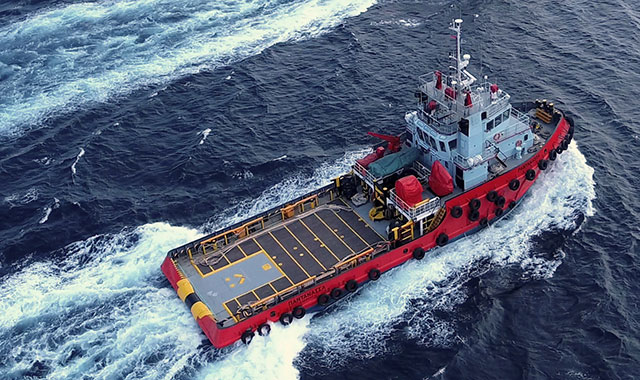

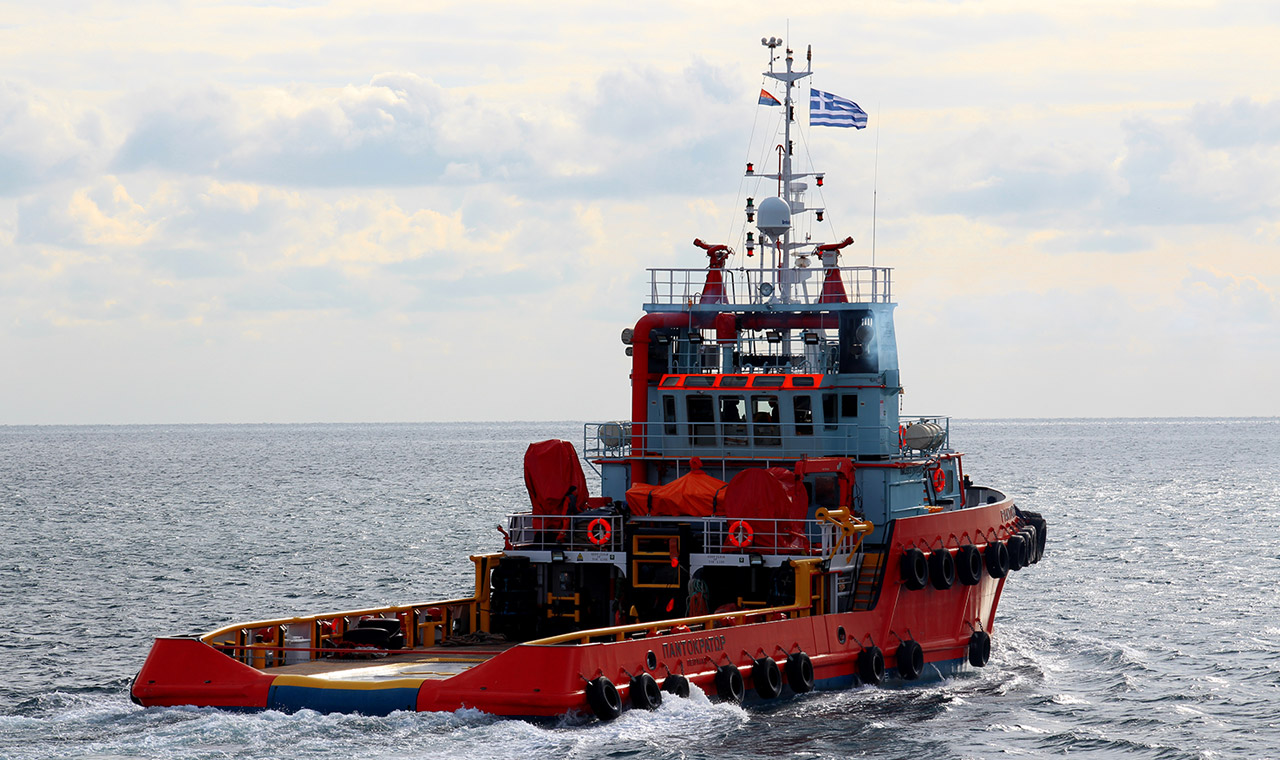

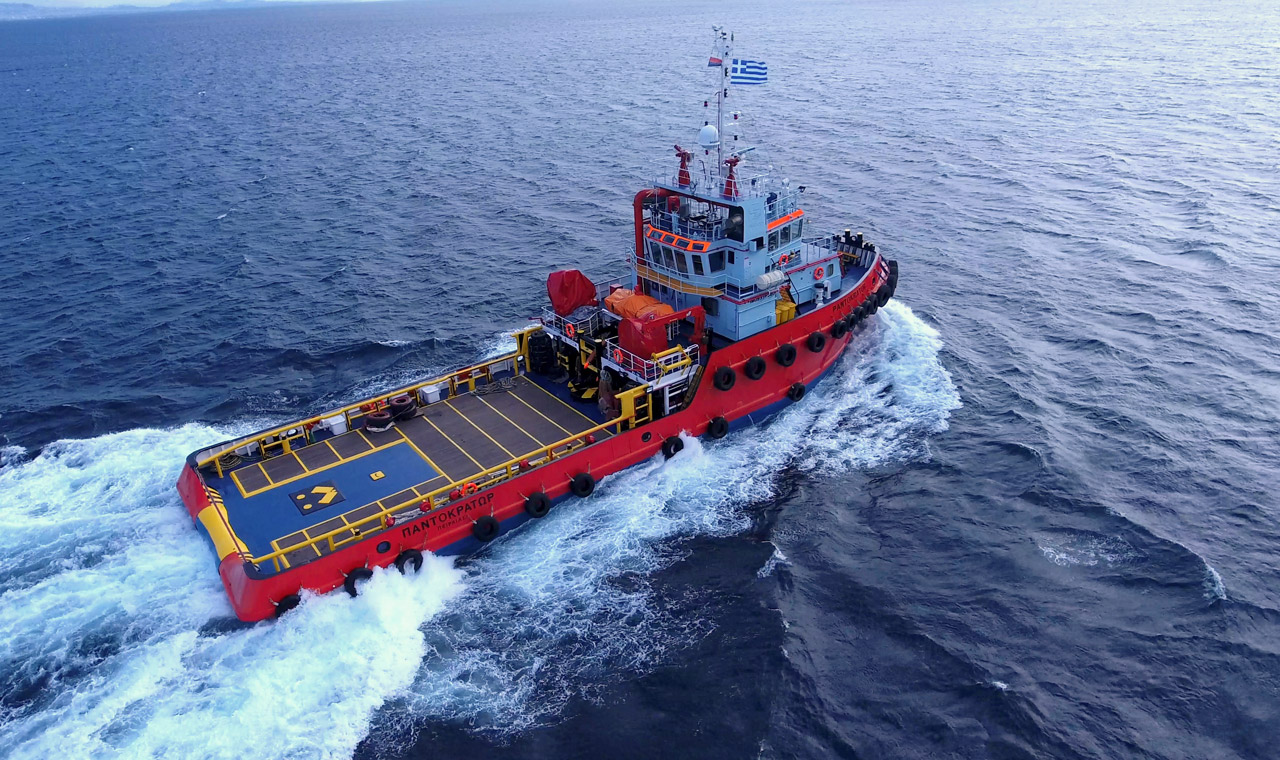

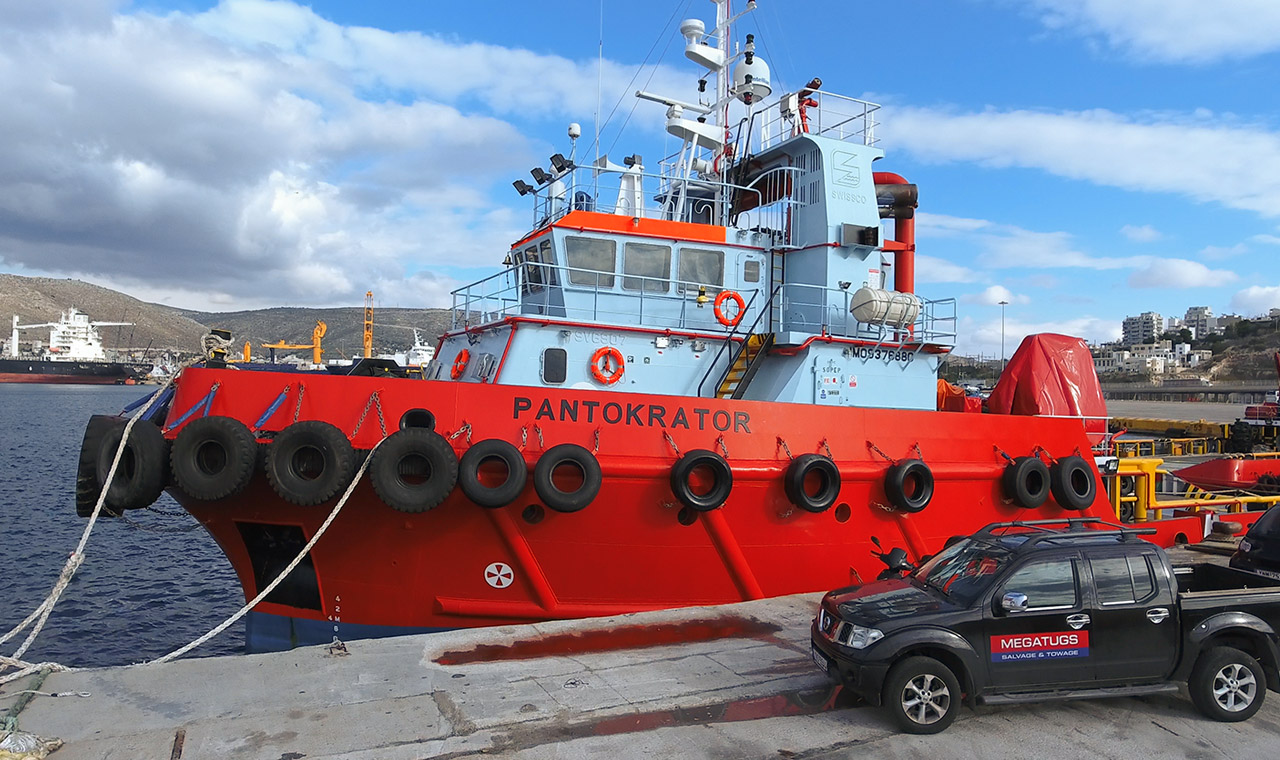

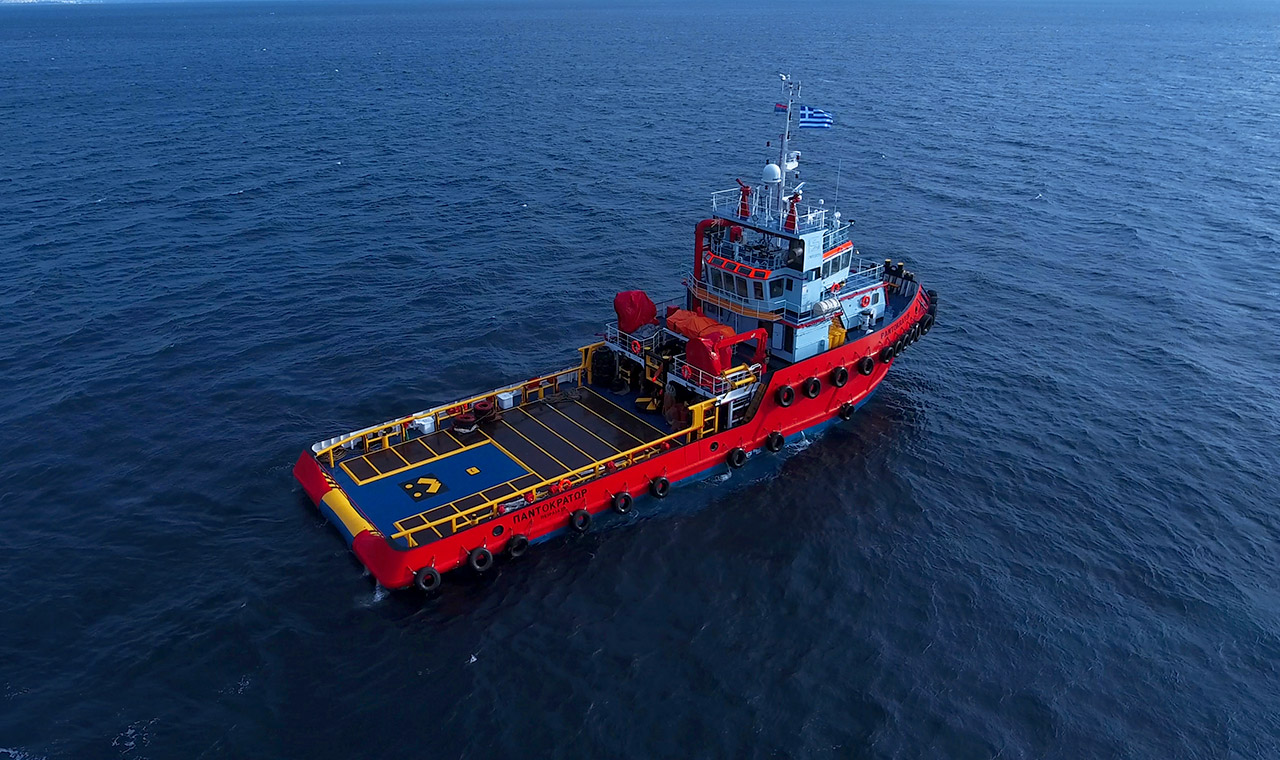

T/B PANTOKRATOR

PANTOKRATOR

PARTICULARS
Vessel Type Anchor Handling, Salvage Tug
IMO Number 9376880
Port of Registry Piraeus
Year Built 2006
Classification Bureau Veritas Hull Mach, Tug, Oil Recovery Ship, FIFI I – Water Spray, Unrestricted navigation
DETAILS
Length Overall 40m
Breadth 11.8m
GRT-NRT 499/149
Depth Moulded 4.6m
Maximum draft 3.8m

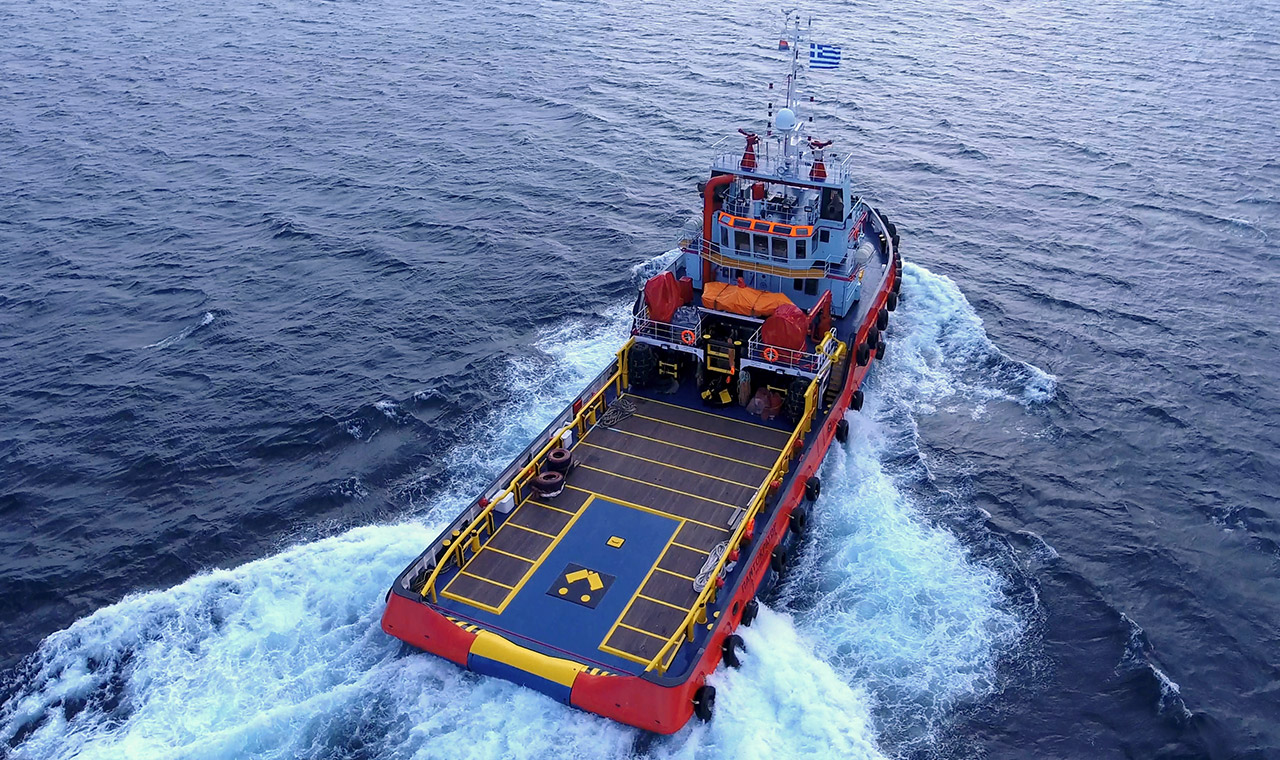

Clear deck Space 150m2
Deck loading 5t/m2
Max Speed/ Consumption 24 h 13 kn / 7 m3
Economical speed/ Consumption 24 h 10 kn / 4.2 m3
Bollard Pull 61.8t
Sewage Plant MARPOL compliant, 20 persons
Rudders Twin
Joystick Not fitted
CAPACITY
Fuel Oil 361.80 m3
Potable Water 172.3 m3
Foam 7.8 m3
Detergent 9.3 m3
MACHINERY
Main Engines 2 x Caterpillar 3516B – 2026 BHP each
Generators 2 x Caterpillar 3406C – 288 BHP – 215 kW each
Port Generator 1 x CAT DE110E2 110kVA
Bow Thruster 3t
Propulsion 2 x Fixed pitch
ACCOMMODATION
Berths 2x 1, 2x 2, 3x 4
Total 18

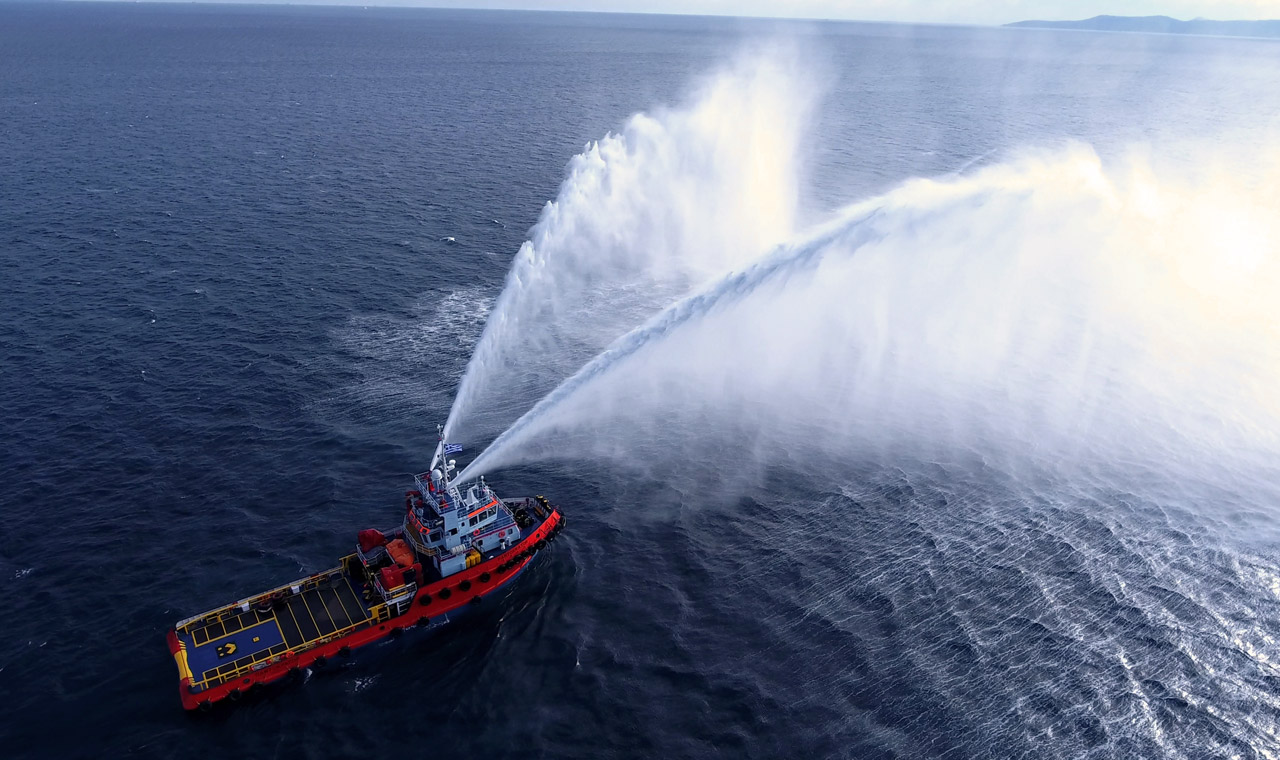

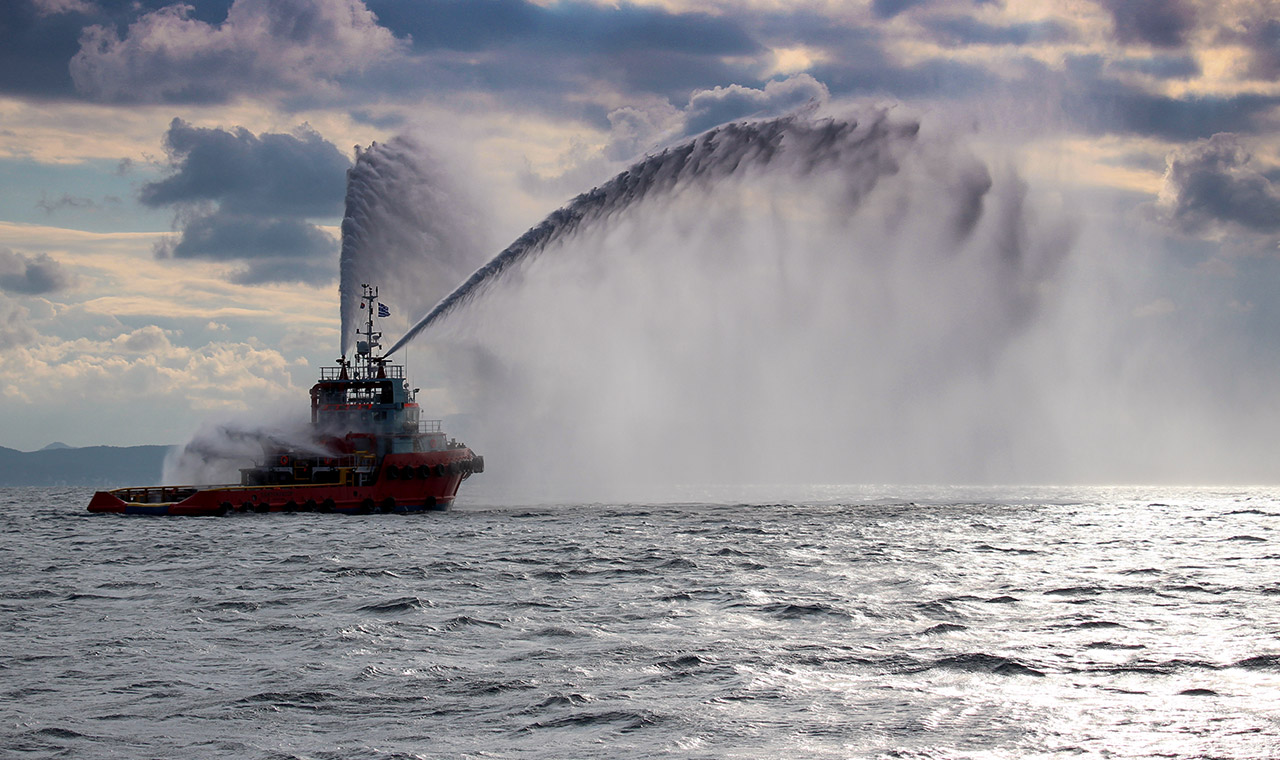

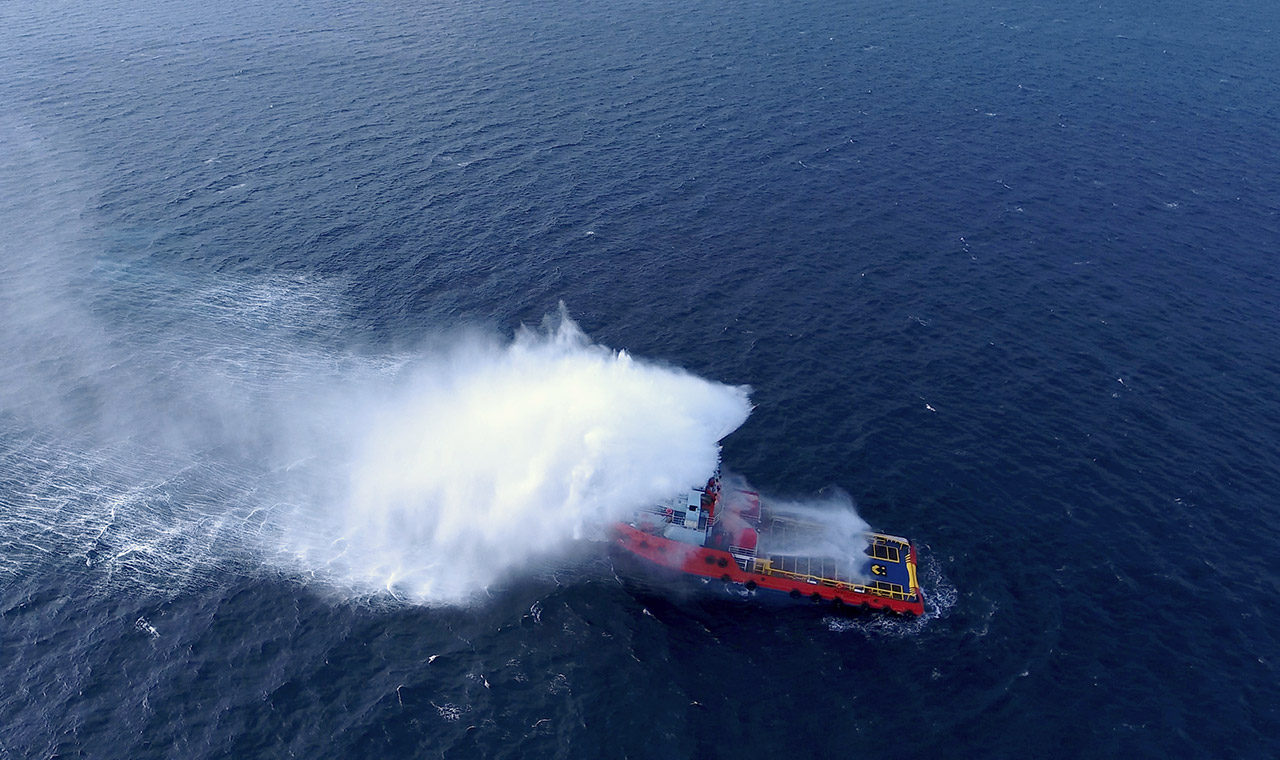

FIRE FIGHTING
Class FIFI I
Monitors 2 x 1200 m3/h
Pumps 1 x 2900 m3/h
DECK EQUIPMENT
Towing Winch
Type Double drum waterfall
Pull 50t
Wire Capacity 1000m x 42mm
Anchor Handling Winch
Type Plimsol double drum waterfall
Pull 50t
Brake Holding 120t
Wire Capacity 1000m x 42mm
Tugger Winch
Number & Capacity 2 x 5t SWL
Wire Capacity 100m x 26mm
Other Deck Equipment
Towing Pins Plimsol 100t
Stern Roller Plimsoll 1.45 m x 3.5 m, 150 t SWL
Shark Jaws 100t strong jaw, 78mm
Electrical Sockets 4 x 415 v x 32A
Hydraulic Crane 27S 5.7 t @ 4.0 m, 950 Kg @ 16.7 m
LIFESAVING
Liferafts 2 x 20 man
Lifejackets 23
FRC/Rescue Boat/Davit SOLAS Semi-rigid BMD Rescue boat & KATO KS 454 RC Davit
Lifebuoys 8
SPECIALIST
Rescue Zone Fitted

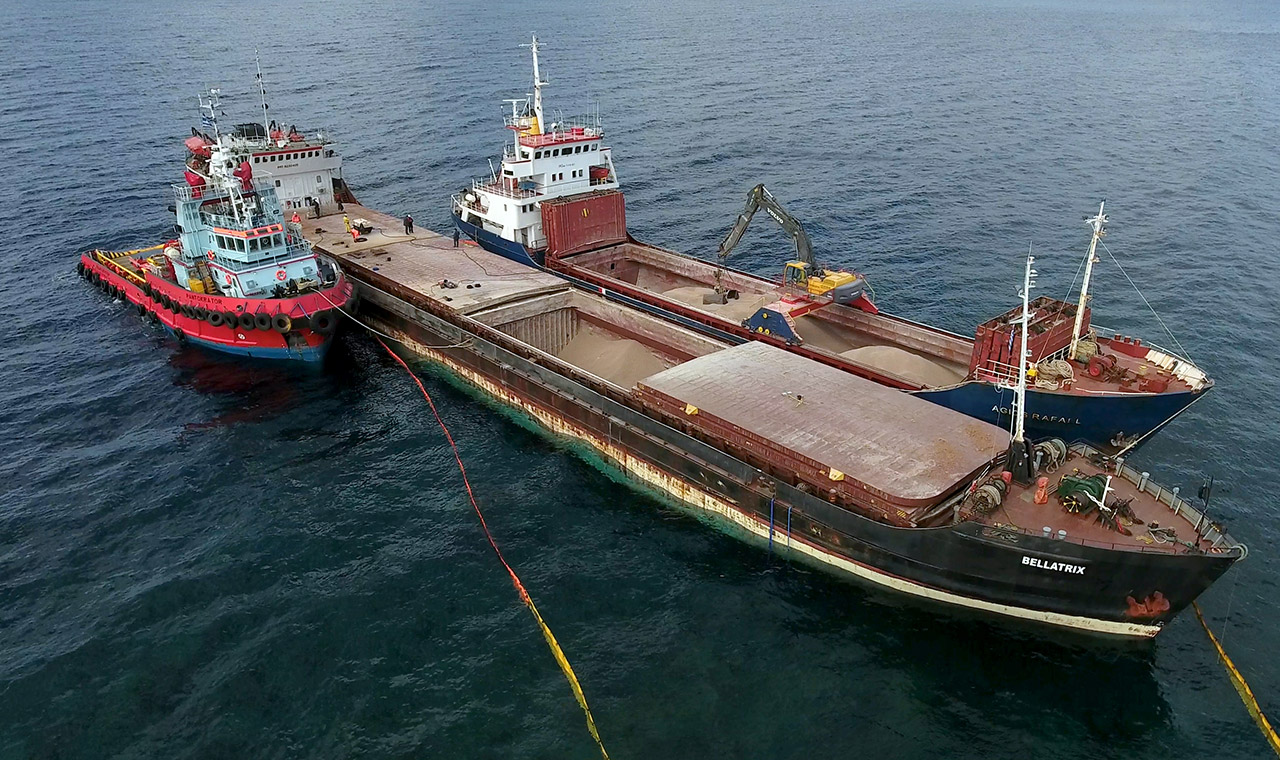

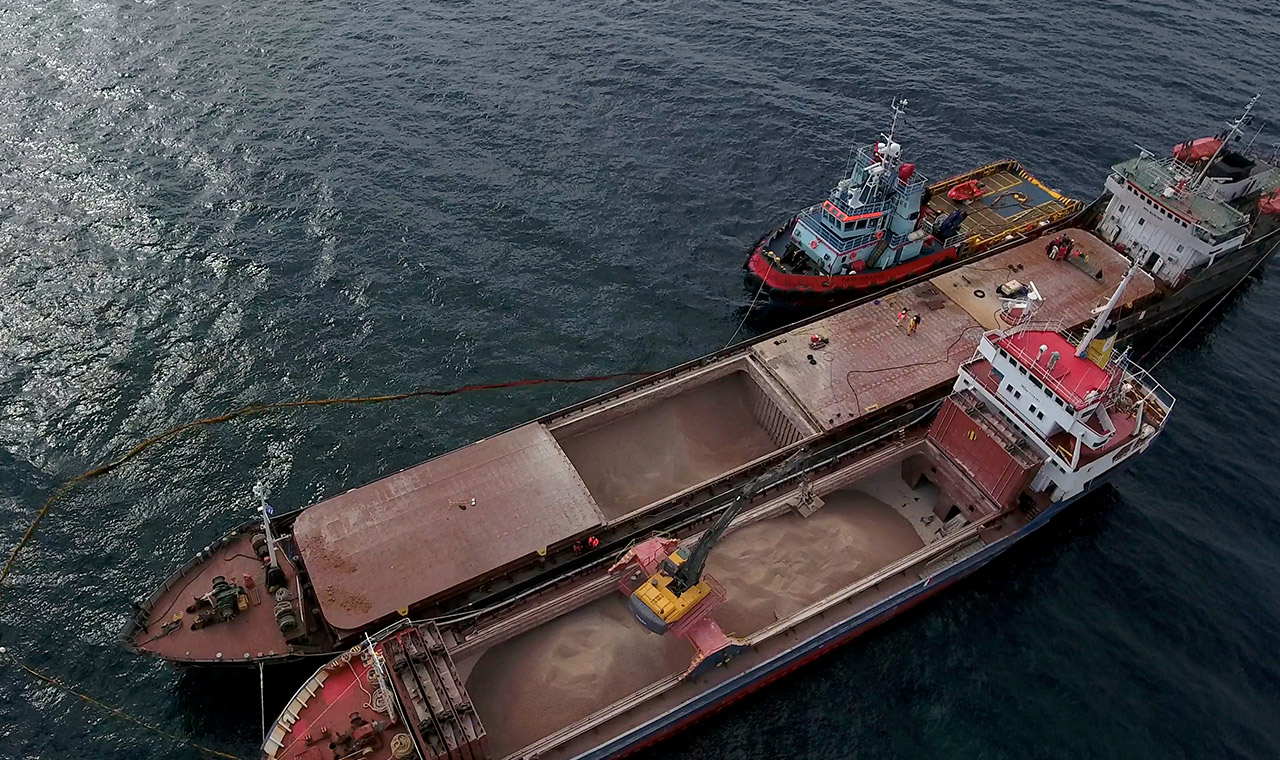

SALVAGE/ ANTIPOLLUTION
Oil Spill Response booms Yes
Salvage pumps Yes
